Barrel metrology

Automated barrel inspection and 3D measurement

The inner surface quality of barrels highly contributes to firearm safety and accuracy.  This is why barrel manufacture processes must be controlled through rigorous barrel ID inspection and 3D measurement.

Until recently, gauging of barrels has been carried out with pin gauges, star gauges, and air gauges. Also, video borescopes have assisted in defect detection.  However, data provided by these methods are minimal and not adequate for a thorough evaluation of ID parameters. To better control the barrel manufacture process, firearm manufacturers increasingly look for more comprehensive and automated barrel ID (inside diameter) measurements. The reasons are:

  • Growing need for 3D modeling and for quantitative evaluation of a wider range of ID parameters.
  • The need to speed up and improve quality control of both intermediate and final product when the production chain is being automated.

In answer to these needs, Novacam non-contact 3D metrology systems increase the range and precision of barrel ID measurements and facilitate automation. As a result, manufacturers improve their process control and product quality, decrease scrap, and increase savings.

System Parameters
for Non-contact Barrel ID Measurement
with Novacam non-contact 3D Metrology Systems

  • Measured barrel ID from 4 mm to 155 mm
  • Micron measurements precision
  • Up to 100,000 measurements (3D points) per second
  • Ability to measure:
    • Rifling parameters – widths and IDs of lands and grooves, twist rate, flank angles, polygonal rifling measurements, etc.
    • Straightness, roundness, taper, runout, etc.
    • Surface defects
    • Roughness
    • Chatter
    • Cross-holes, grooves, steps, undercuts, and slots.
  • Preconfigured for automated barrel and rifling inspection reports
  • User-configurable automated inspection sequences along linear, circular, or spiral paths within the barrel ID

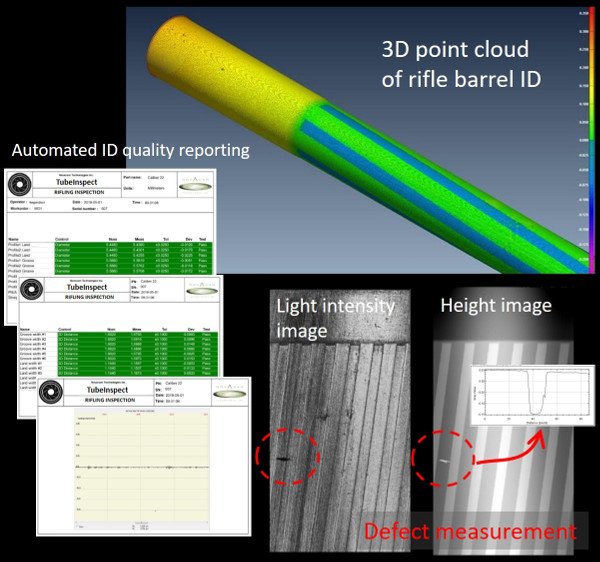

Barrel measurement capabilities with Novacam systems include automated reporting, high-resolution visualization for interactive analysis, and facilitated defect inspection and measurement.

Barrel measurement capabilities with Novacam systems include automated reporting, high-resolution visualization for interactive analysis, and facilitated defect inspection and measurement.

Two systems for barrel ID measurement: TubeInspect and BoreInspect

Novacam offers two non-contact 3D metrology systems for barrel inspection – the BoreInspect and the TubeInspect. Based on the same technology (low-coherence interferometry), both systems:

  • Measure bore IDs of rifles, shotguns, handguns as well as large caliber barrels
  • Measure GD&T parameters (e.g., straightness, roundness, and rifling dimensions) and roughness with a single probe
  • Are easily integrated in firearm manufacturer’s lab or in automated industrial inspection setups
  • Produce 3D data used for automated user-configurable reports, for SPC (statistical process control) monitoring of production, and for gaining manufacture process insight that leads to process improvement.

Note the TubeInspect also measures ODs of barrels, reamers, mandrels, etc.

Many manufacturers appreciate the capability of TubeInspect to also measure – down to the micron:

  • The outside diameter (OD) of barrels. In most cases, there is no need to change probes.
  • The OD of reamers, mandrels and other machining tools. For mandrels for example, the TubeInspect can measure the same parameters as for barrel IDs – lands and grooves, pitch, straightness, etc. Periodic high-precision inspection of barrel machining tools helps avoid scrap that occurs when tools are out of spec.  No matter which rifling process is employed – cut rifling, broach rifling, button rifling or hammer forging – manufacturers gain superior control on the machining & finishing processes.

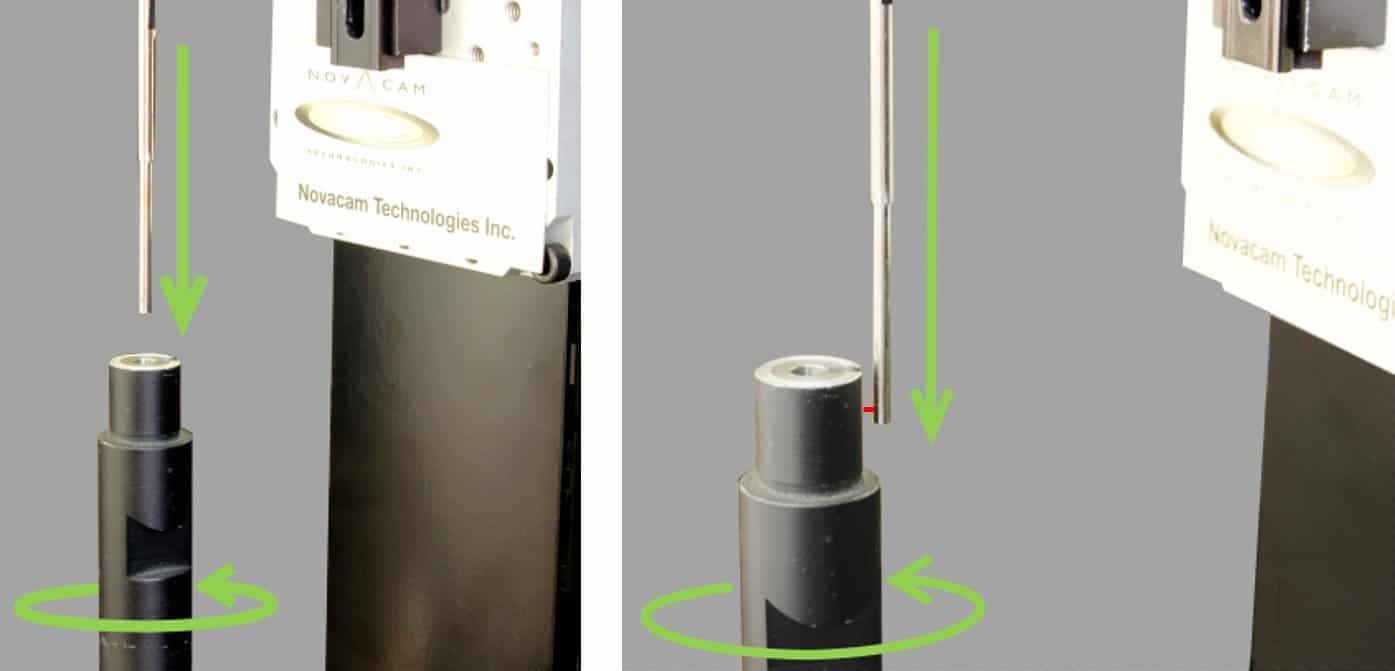

With the TubeInspect, the same instrument and probe on the same inspection station can measure both the barrel ID & OD.

With the TubeInspect, the same instrument and probe on the same inspection station can measure both the barrel ID & OD.

More on the selection of the system for your barrel inspection application is available further below.

First though, let’s look at the barrel ID data obtained by both the TubeInspect and BoreInspect.

Format of raw measurement data

Novacam 3D metrology systems generate 3 sets of raw data simultaneously: 3D point cloud, light intensity map, and height map. For example, here below is ID data acquired by TubeInspect from a scan of an 18”, .22 caliber rifle barrel (46 cm long, 5.6 mm diameter).

The 3D point cloud data is used for both interactive and automated analysis of a 3D model of the bore and for calculating 3D parameters.

The 3D point cloud data is used for both interactive and automated analysis of a 3D model of the bore and for calculating 3D parameters.

This particular high-resolution scan comprises ~4.7 million 3D points. The user selected:

  • Sampling step in axial direction: 0.1 mm
  • Sampling step along rotational path: ~ 0.017 mm (1,050 points/ rotation)
The light intensity map (above left) and the height map (above right) of the unfolded bore ID surface are automatically generated at the same time as the 3D point cloud file. These data sets greatly facilitate defect detection and measurement.

The light intensity map (above left) and the height map (above right) of the unfolded bore ID surface are automatically generated at the same time as the 3D point cloud file. These data sets greatly facilitate defect detection and measurement.

Options for data analysis

  • Novacam systems come preconfigured to produce automated barrel (and rifling) inspection reports.  These reports are described in more detail further below.

  • The generated 3D point cloud data may also be viewed and analyzed with third party CAD/GD&T software in conjunction with Novacam barrel measurement analysis tools. These tools are geared towards speeding up and fully automating the repetitive tasks of bore data processing and go-no-go reporting. The majority of these tools are available as an extension to PolyWorks InspectorTM GD&T software, although support is also available for other packages such as Geomagic.
  • The generated height and light intensity maps may be viewed from within Novacam data acquisition software for analysis of defects such as burrs, erosion, pitting, corrosion, or wear. More on this below.
  • For clients who prefer to process the raw barrel ID data themselves using their own display and analysis software, a range of raw data options are available: 3D point cloud, height image, intensity image, roughness, diameter, STL file, and more.

Interactive data visualization

Novacam offers third party CAD/GD&T software PolyWorks InspectorTM as an option with its metrology systems.  This software enables full viewing and analysis of the acquired point cloud as a 3D interactive map. As shown in the images below, views such as deviation maps (deviation from perfect cylinder or from a CAD) help provide key insight into bore machining processes – including gundrilling, reaming, rifling, stress relieving, contouring, chambering, or finishing – as well as into the effect of wear.

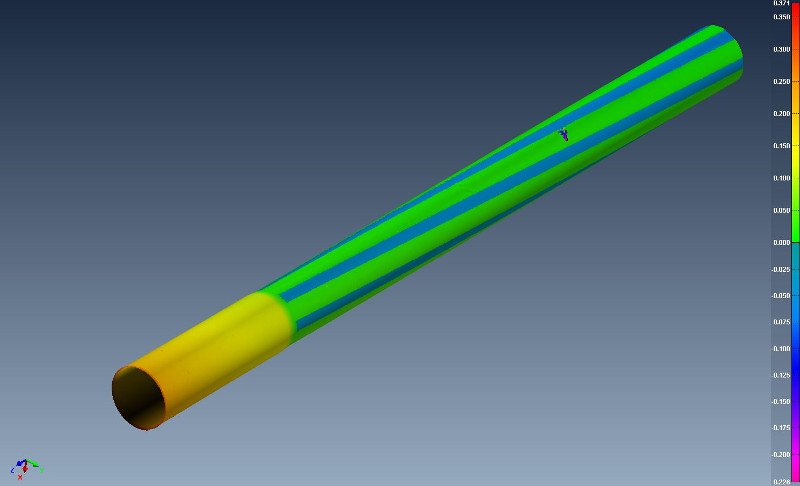

Fully mapped ID surface of the first 9 cm of an 18”, .22 caliber rifle barrel (46 cm long, 5.6 mm diameter) shown as 3D deviation map.

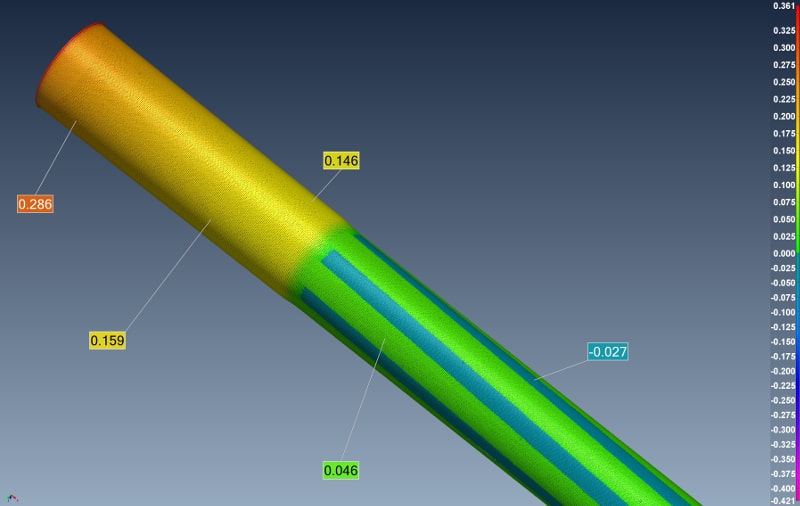

Zooming into the 3D model, users can query surface measurements

Progressive zooming in reveals surface defects.

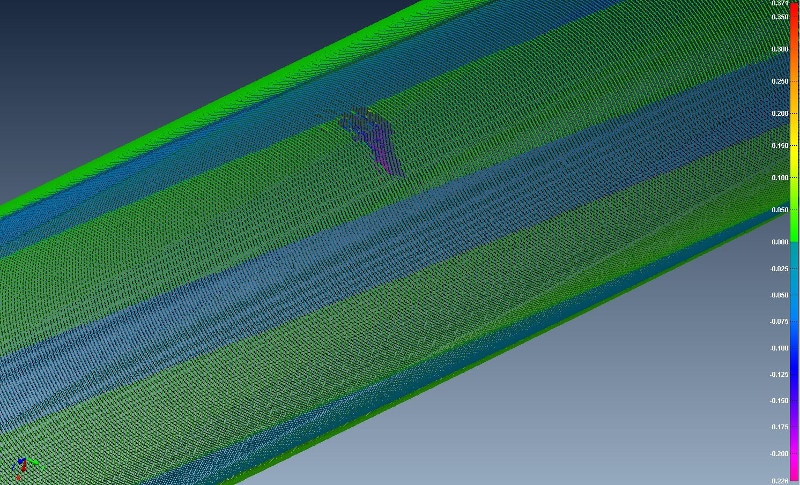

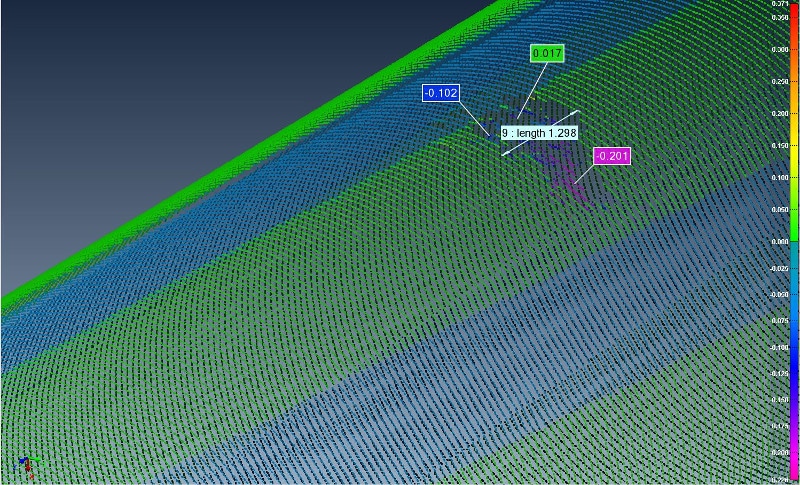

Interactive measurement of a discovered defect.

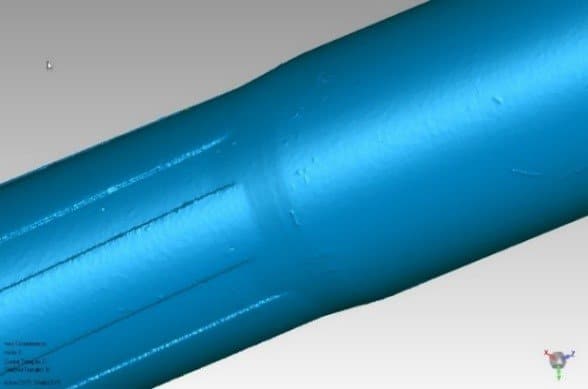

View of the barrel in STL (instead of 3D point cloud) format.

View of the barrel in STL (instead of 3D point cloud) format.

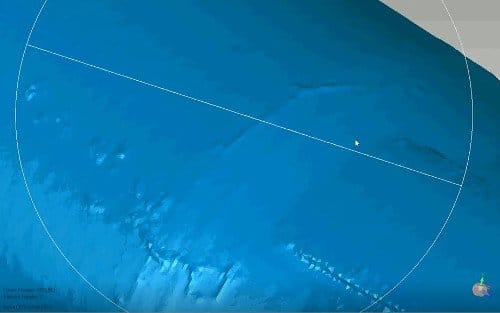

Again, users can zoom in to examine barrel ID surface details.

Again, users can zoom in to examine barrel ID surface details.

The images above show high-density point cloud data. Such high level of detail is not always necessary; when inspection time is of the essence, several profiles inside a barrel provide an excellent basis for fast quality control assessment. As shown below, users can run an inspection sequence consisting of several barrel profiles, and use Novacam’s barrel measurement analysis tools to measure key barrel measurement parameters.

Example of 3D point cloud with three rifling profiles

Example of 3D point cloud with three rifling profiles

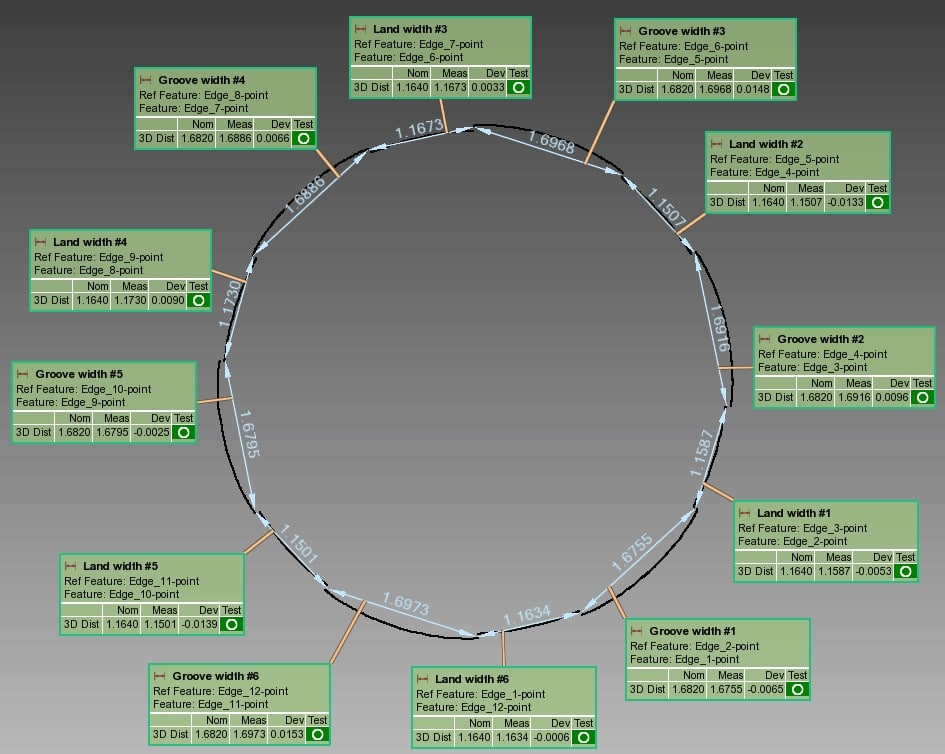

Lands and grooves measurements and go-no-go reporting for a rifling profile. Each land and groove is marked with the measured width, the nominal width, the value of deviation from nominal, and the pass-fail status based on user-set tolerances.

Barrel analysis tools

With Novacam 3D metrology systems, users may choose to:

  • Evaluate the barrel ID data with respect to user-defined criteria (GD&T, inner feature specifications, roughness, and defect inspection) or with respect to a reference CAD model.
  • Carry out the inspection, analysis, and reporting interactively or in a fully automated mode. To automate repetitive tasks, users configure Scan Definitions, which comprise measurement sequences and subsequent reporting. Once a Scan Definition is built, it can be named and saved for later reuse.

Automated rifling analysis – lands, grooves, twist rate, straightness

As an example of a user-configured inspection sequence, a Scan Definition called CAL22 was configured to measure, analyze, and report on three circular profiles at specified depths within a 22-caliber barrel. Nominal and tolerance values for each parameter were included in the definition.

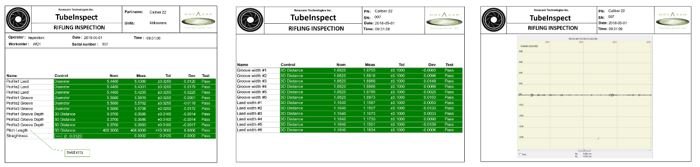

This particular Scan Definition generates a multi-page report.  Click sample pages from the report for close-up view.

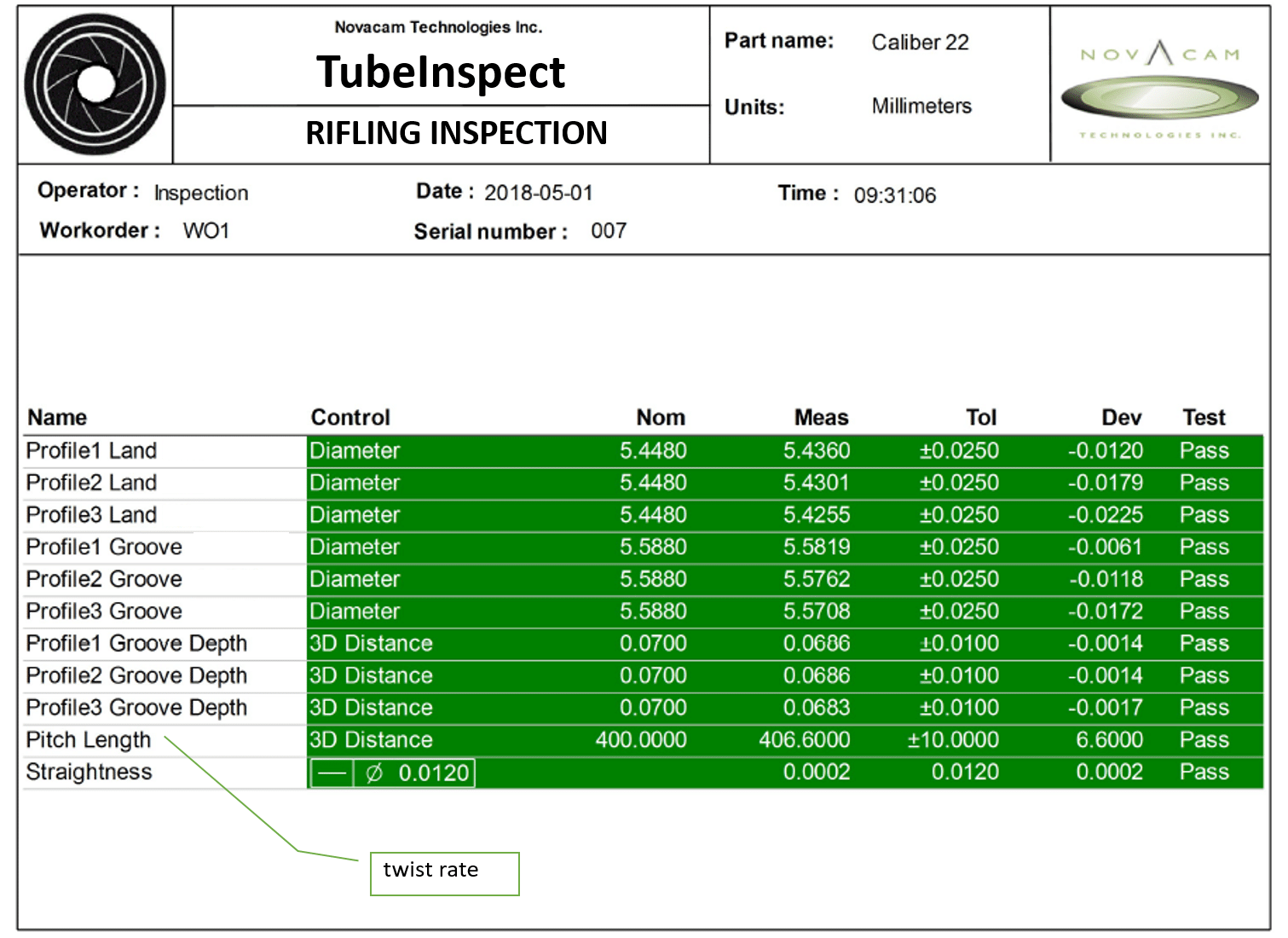

Report summary page

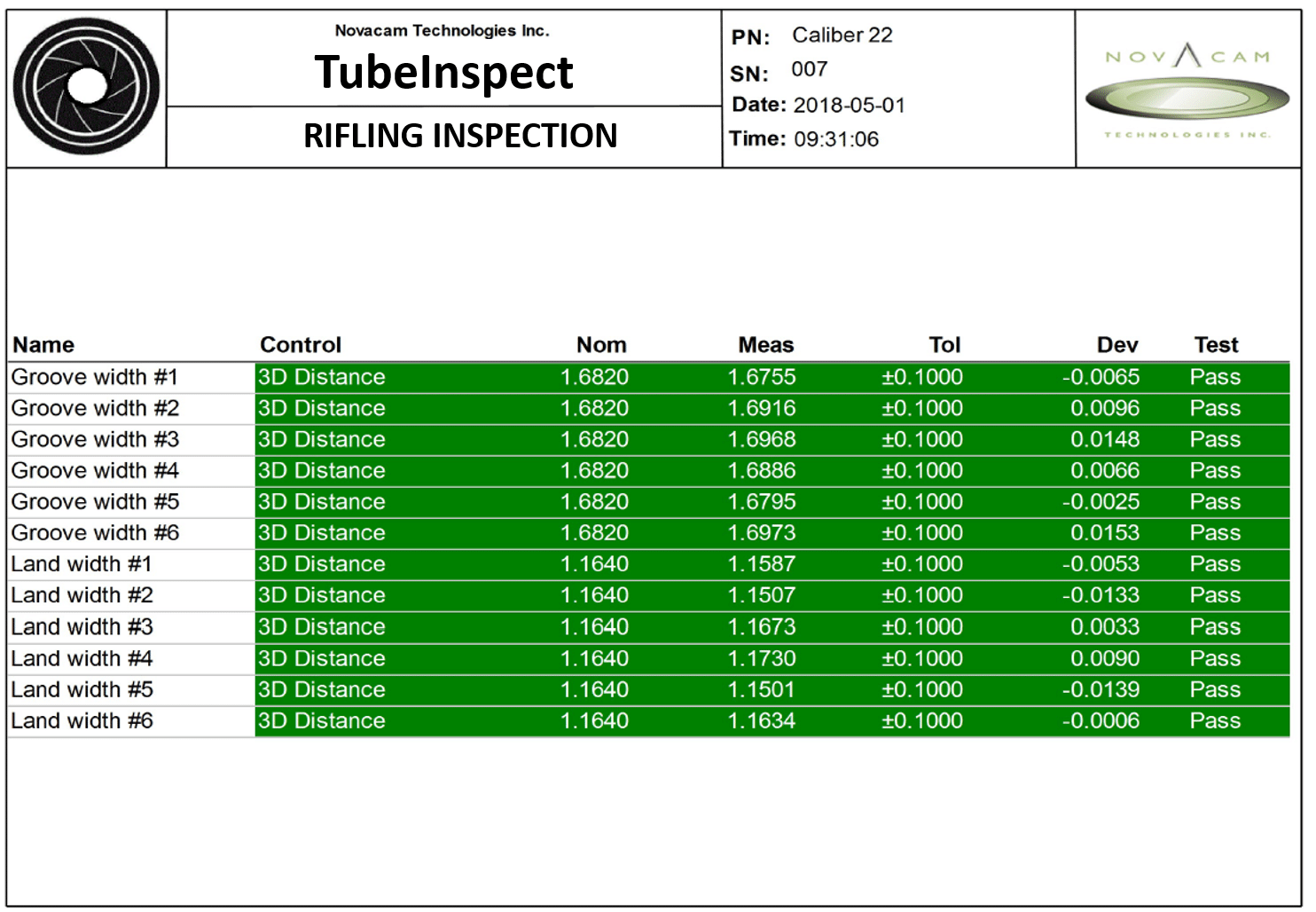

Profile 1 measurements

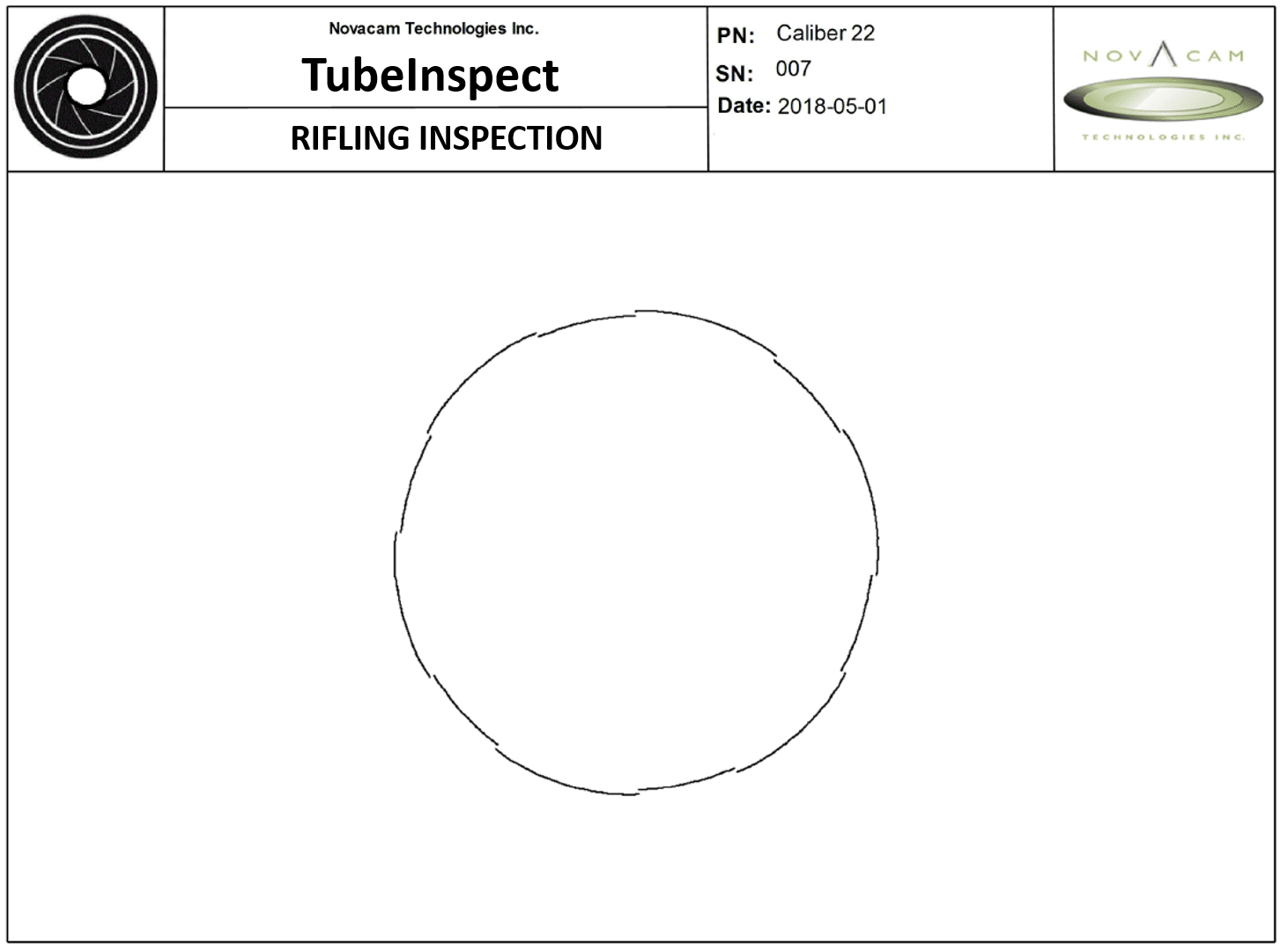

Profile 1 visualization

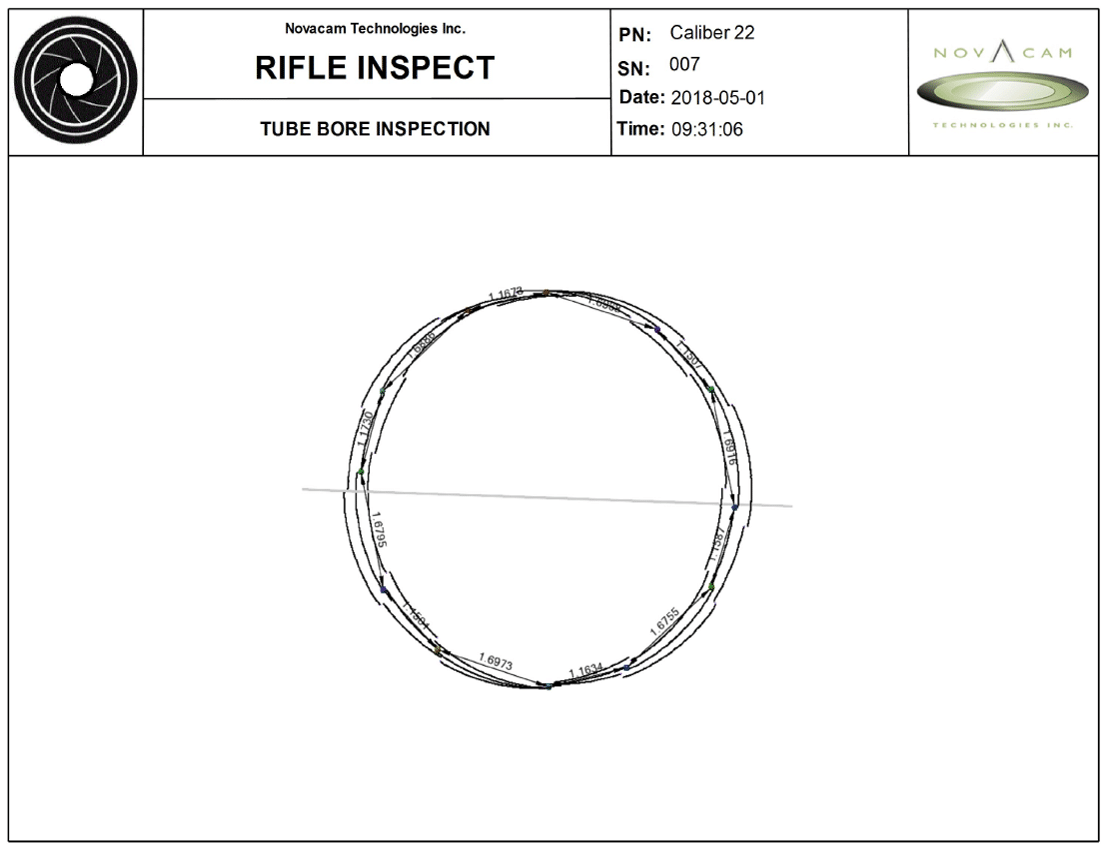

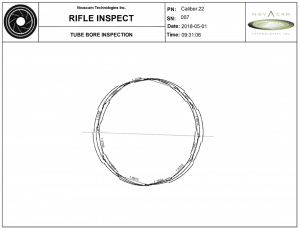

All 3 profiles superimposed

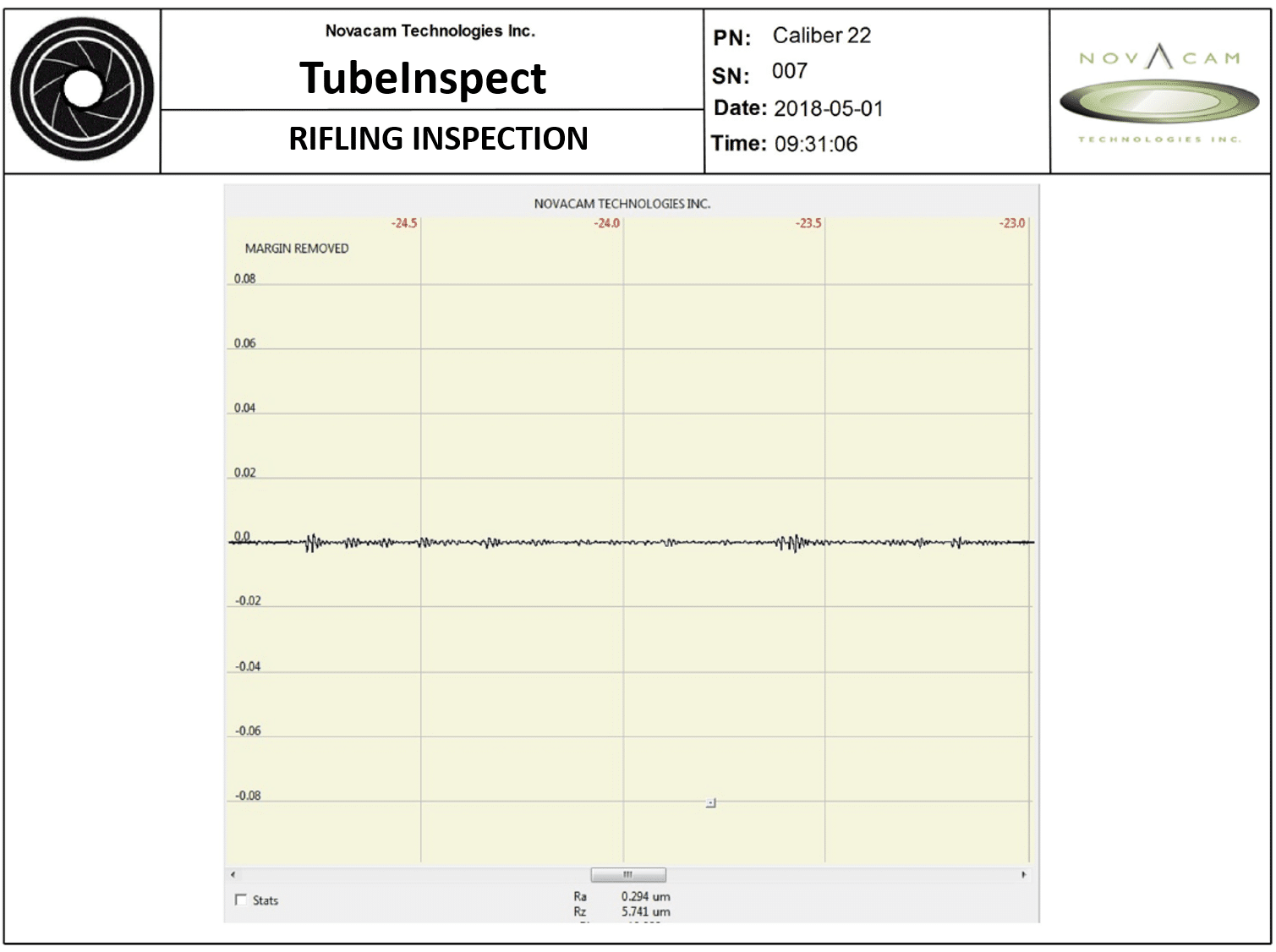

Roughness measurement callout

With barrel inspection reports such as these, the operator is quickly informed of the barrel’s conformity to specified tolerances.

Below are more details on these and other measurements that can be obtained with Novacam 3D metrology systems and included in barrel inspection reports.

Straightness measurement

Barrel straightness may be calculated from 3 or more circular profiles (see below left) or from a high-density scan of the bore ID (see below right).

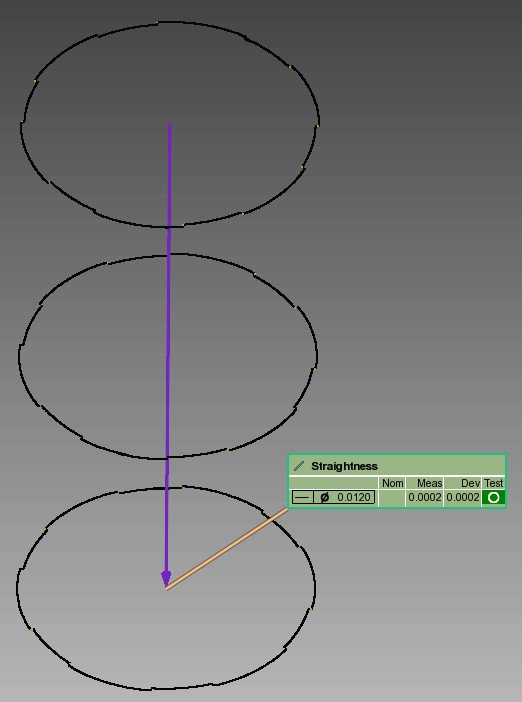

Bore ID straightness from 3 profiles.

Bore ID straightness from 3 profiles.

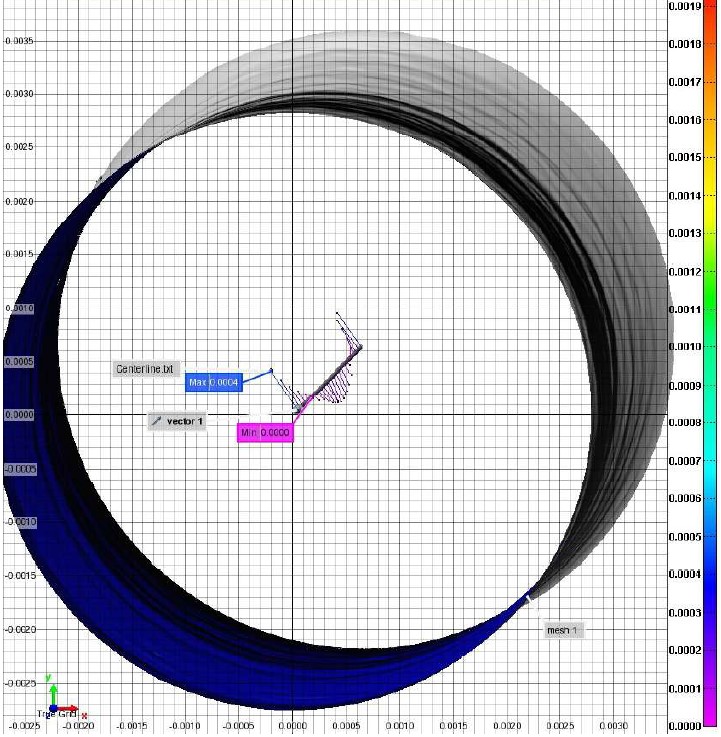

Bore ID straightness from a high density scan.

Bore ID straightness from a high density scan.

Notably, the repeatability of straightness measurements acquired with Novacam systems is better than 0.5 µm (0.00002”).

  • Example: GD&T straightness was measured for 2 bores. For each bore, the measurements were repeated 10 times. PolyWorks InspectorTM software was used for straightness calculation and reporting to obtain the following results:
Repeatability of straightness measurements

Repeatability of straightness measurements

Roundness (circularity) measurement

Roundness may be measured for both smoothbores and rifled bores.

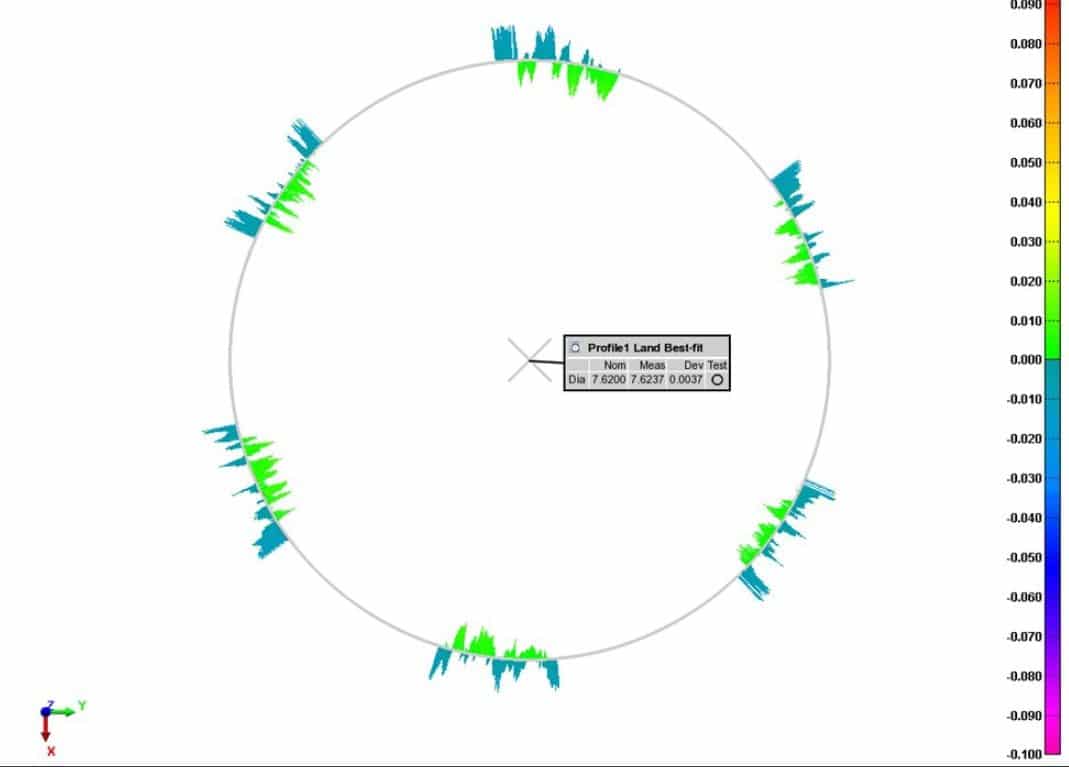

Roundness of lands within a rifled bore

Roundness of lands within a rifled bore

Surface profile measurement – cylindricity, conicity, taper, etc.

Cylinder, cone, and taper tolerancing, as well as any other profile tolerancing, is supported by Novacam through powerful GD&T software like PolyWorks InspectorTM.

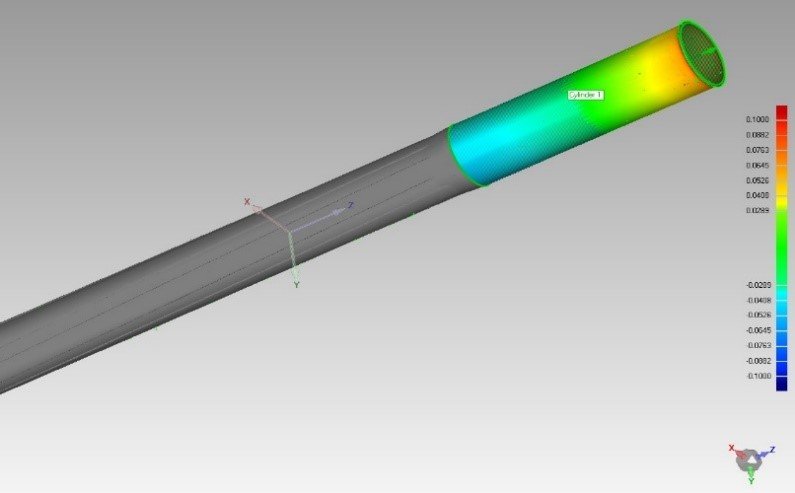

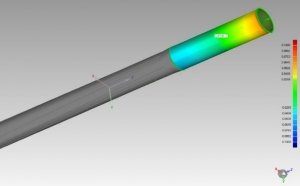

Cylinder deviation map shows the cylindricity of the rifle chamber.

Cylinder deviation map shows the cylindricity of the rifle chamber.

Runout measurement

All runouts may be measured, including:

  • Runout between the chamber and the lands
  • Runout between grooves and lands
  • Runout between OD and lands.

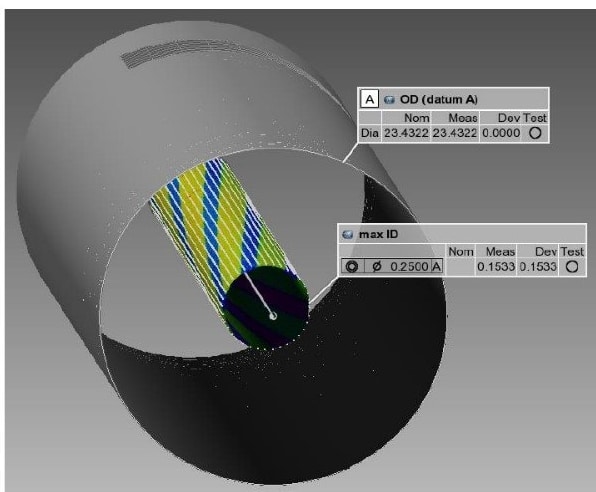

The ID and OD surfaces of a rifle barrel scanned with the TubeInspect and subsequently combined into one data set.  The ID and OD axes may be compared and runout calculated.

The ID and OD surfaces of a rifle barrel scanned with the TubeInspect and subsequently combined into one data set. The ID and OD axes may be compared and runout calculated.

Measurement of flank angles

Angles of rifling groove edges (flank angles) can also be measured and displayed in a report format.

Flank angle measurement

Flank angle measurement

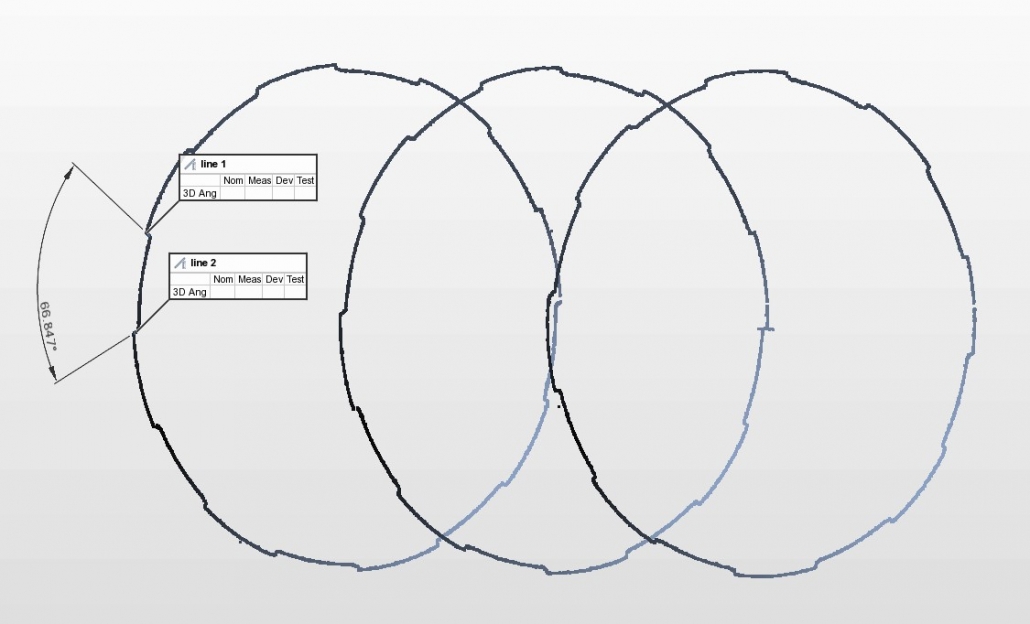

Measurement of flank angles (angles of walls between grooves and lands)

Measurement of flank angles (angles of walls between grooves and lands)

Roughness measurement and analysis

A roughness profile of a selected section of the barrel is available directly from Novacam acquisition software and may also be included as part of an automatically generated barrel inspection report. Read more on roughness measurement with Novacam systems.

Roughness callout measurements

Roughness callout measurements

Cross-hole measurement

Gas-port holes drilled in automated rifles can be measured and visualized.

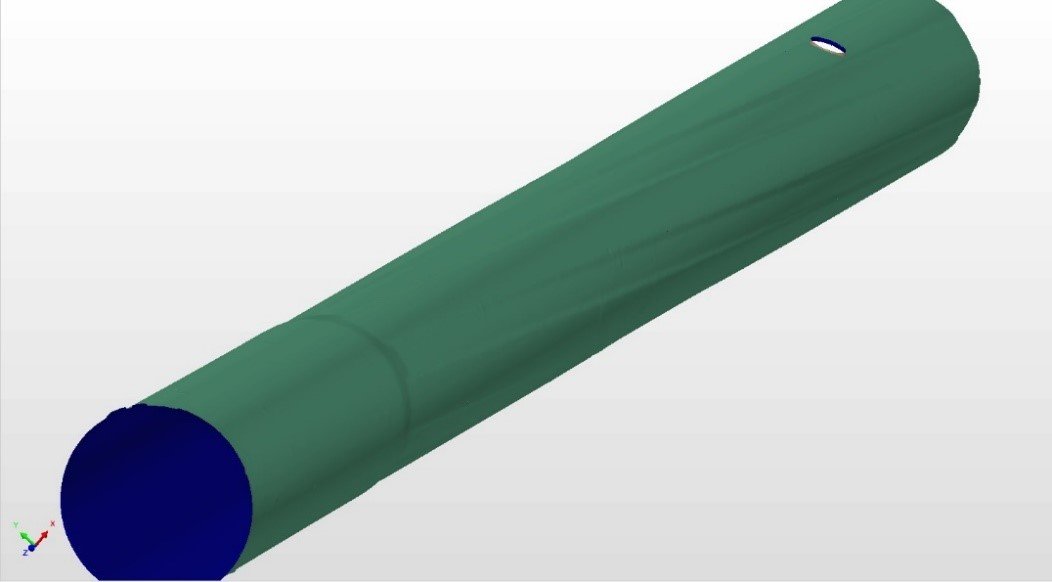

Gas port hole in a rifle barrel

Gas port hole in a rifle barrel

Chatter measurement and analysis

Novacam 3D metrology systems provide fast and reliable non-contact chatter measurements on IDs of barrels. The TubeInspect will also measure chatter on barrel ODs or on the ODs of barrel machining tools.

Novacam Chatter Analysis Software mathematically analyzes the pattern of chatter, and characterizes it by parameters such as the amplitude or RMS (root mean square) value for each lobe value. Parts may be categorized as PASS or FAIL as per user criteria.

Read more on bore ID chatter measurement with Novacam systems.

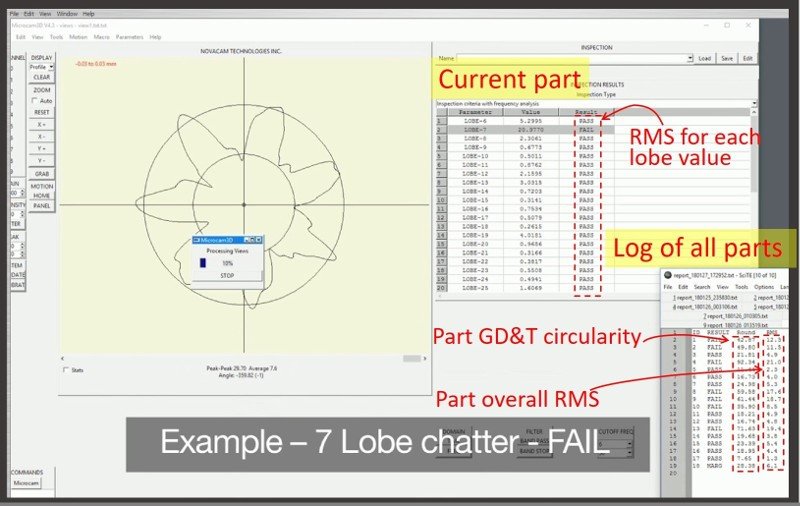

Bore ID chatter measurement and automated PASS/FAIL analysis

Bore ID chatter measurement and automated PASS/FAIL analysis

Defect inspection

With Novacam 3D metrology systems, defect detection and reporting may be completely automated. Nevertheless, for clients who want to also look for defects interactively, the height and light intensity maps generated in addition to 3D point clouds are excellent tools for fast bore ID defect detection and analysis. The following maps represent the ID of the first 9 cm of a .22 caliber (5.6 mm diameter) rifle barrel.

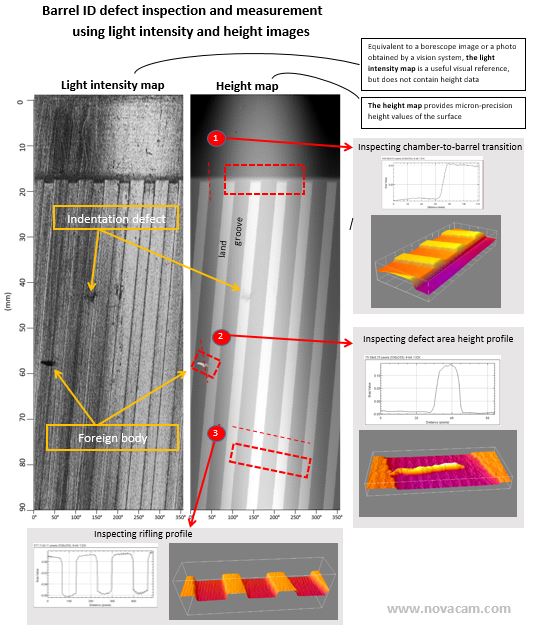

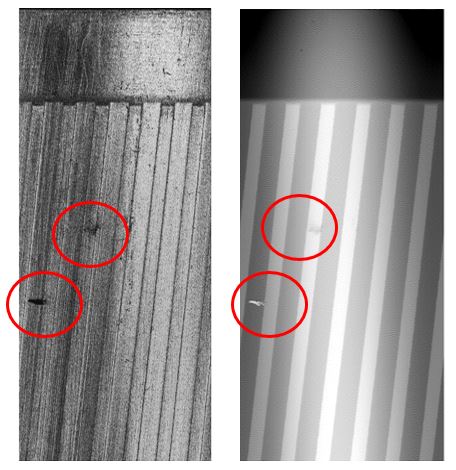

Barrel ID defect inspection and measurement using light intensity and height images.

Barrel ID defect inspection and measurement using light intensity and height images.

Which system is more suitable for my application – TubeInspect or BoreInspect?

Both TubeInspect and BoreInspect include the following components:

  1. Microcam-3D/4D interferometer (19” rack-mountable component) that provides light source to the optical probe and carries out optical and electronic processing of the measurements
  2. Fiber-based side-looking optical probe whose length, diameter, and optical properties (spot size, standoff distance) are selected according to client needs. Several probes may be multiplexed to one interferometer for additional return on investment (ROI).
  3. Motion controller (19” rack-mountable component)
  4. PC workstation (mini desktop size PC or laptop) that hosts Novacam data acquisition software and, typically, data analysis software
  5. Inspection station with motion components (linear and rotation) that are standard for standard supported barrel calibers or customized to client requirements
  6. Calibration rings.

The main difference between the two systems is the manner in which they scan the barrel ID:

The TubeInspect rotates the measured barrel around the optical probe.

TubeInspect

TubeInspect

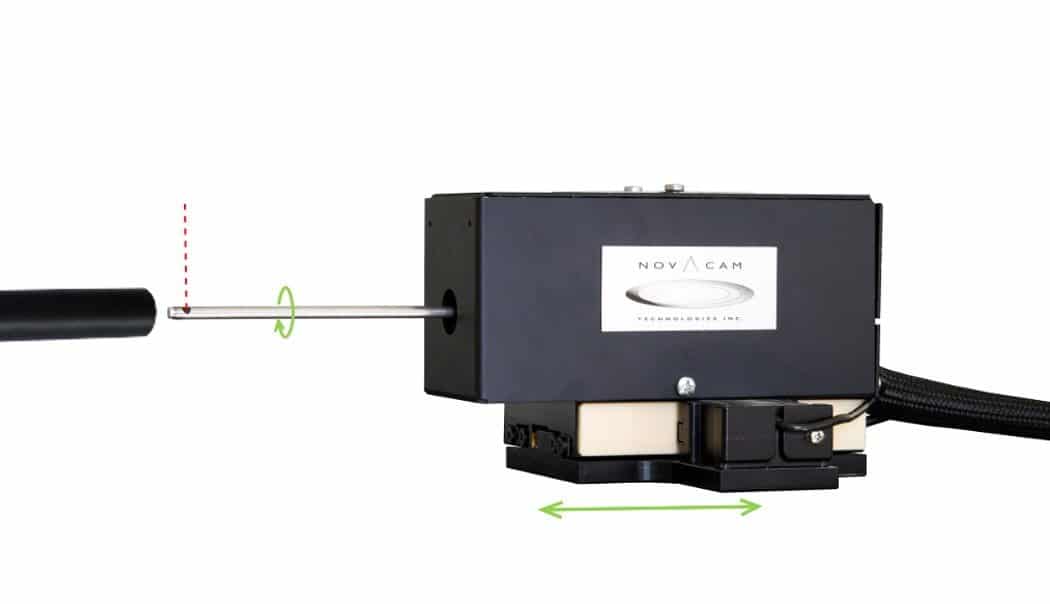

The BoreInspect rotates the optical probe within the fixed barrel.

BoreInspect about to enter a rifle barrel

BoreInspect about to enter a rifle barrel

Videos showing BoreInspect functionality:

The following chart outlines the common points and the differences between the two systems.

 TubeInspectBoreInspect
Common characteristics
Technologylow-coherence interferometry
Type of scanningNon-contact, optical, collinear scanning (enabling even the measurement of high-aspect-ratio features such as cross-holes, undercuts, etc.)
Light wavelength1,310 nm, infrared
Light bandwidthBroadband light
Pointer for alignment purposesIn-probe laser @ 650 nm
Instrument safetyClass 1M laser product*:
< 20 mW of infrared, < 5 mW of in-probe laser
Acquisition speed2,100 or 100,000 3D point measurements per second, depending on interferometer model selected (Microcam-3D or Microcam-4D)
Sampling step along rotational pathuser-configurable
Sampling step in axial directionuser-configurable
Light spot size
(Lateral [XY-axis] resolution)
Variable, typically 13 to 22 µm (512 to 870 µin.)
Key differences
Key differentiatorRotates the measured barrel. The side-looking probe advances along the inside (or outside) wall of the rotating barrel to acquire the ID (or OD).Rotates and advances the side-looking probe into the measured barrel, which remains fixed.
Rotational speed for spiral acquisitionUp to 2 rotations (circular profiles) per second with an upgrade to 6 rotations per secondUp to 30 rotations (circular profiles) per second
Probe positioningProbe does not need to be positioned at the center of the bore; it only needs to remain at a fixed distance from the side wall.Probe should be positioned close to the bore centerline (+/- 0.25 mm) to capture the entirety of ID features. For irregularly-shaped objects or slots or crevices, the probe can acquire the entire surface by scanning from several positions.
Benefits
Standard barrel diameter sizes**Small caliber:
.172 caliber (4 mm)
.20 caliber (5 mm)
.22 caliber (5.6 mm)
.243 caliber (6mm)
.26 caliber (6.5 mm)
.284 caliber (7 mm)
.308 caliber (7.62 mm)
.323 caliber (8 mm)
.357 caliber (9 mm)
.40 caliber (10mm)
.44 caliber (10.9 mm)
.45 caliber (11.43 mm)
.50 caliber (12.7 mm)

Medium and large caliber:
20 mm - 90 mm
The same system standard barrel IDs are supported, but depending on the application, different caliber ranges may require a change of probe.

Note: Novacam’s extended range rotational probes (4.6-mm diameter) are capable of scanning barrel IDs from 6 mm to 30 mm – wider range than any other rotational probe currently on the market.
Barrel lengths**Standard up to 24" (600 mm)Standard up to 12" (300 mm)
Barrel weightUp to 250 kg is standard. Heavier barrels may require custom rotational stages.Not applicable since barrel remains stationary
Unique advantagesAbility to scan:
  • Barrels with various diameters with the same system
  • Barrel ID and OD with the same system
  • Ideal for barrels that cannot be rotated
  • Maximum rotation speed is higher, at up to 30 rotations per second
Extra bonus measurementsAbility to scan:
  • IDs of chambers, chokes, and gas tubes
  • Barrel ODs – including
    • Flatness, perpendicularity, and concentricity of OD datum surfaces
    • Features such as fluting or rifle muzzle threads
  • ODs of gas tubes, gas pistons, bolt bodies, and bolt carrier bodies
  • ODs of machining tools such as reamers and mandrels
  • ODs of related components such as cutting tools for ammunition die blocks
Ability to scan:
  • IDs of chambers, chokes, and gas tubes
  • IDs of rifle receivers
  • IDs of ammunition die blocks
* Class 1M laser product: Visible and invisible laser radiation. Do not stare into beam or view directly with optical instruments.
** Non-standard barrel IDs and lengths can be accommodated with custom setups. With custom longer probes, bores as long as 6’ (1.8 m) have been scanned. A trade-off exists between probe diameter (which affects rigidity) and probe length. For longer probes, centralizers may be required.

Conclusion

When it comes to firearm accuracy and safety, barrel ID quality is key. Novacam’s TubeInspect and BoreInspect bring significant inspection capabilities to barrel manufacturers. These capabilities include high-precision barrel ID measurements, option for complete automation of the inspection process, and high level of versatility for inspection station setup. For manufacturers, the wide variety of measurements obtainable automatically with either TubeInspect or BoreInspect expands the range of quantifiable parameters while decreasing the inspection effort. More data and more efficient inspection means better process control. And cost savings.

Outside diameter (OD) measurements, which are additionally available with the TubeInspect, increase the return on investment (ROI) for barrel manufacturers on two fronts. First, barrel OD surface parameters may be measured to the same level of detail and precision as the barrel ID, ensuring better control on the final product. Second, using the TubeInspect to measure the OD of machining tools (mandrels, reamers, etc.) ensures that only to-spec tools are used. With such tool verification capability, product quality improves, scrap decreases, and savings increase.

Novacam encourages technicians and engineers in charge of barrel inspection to contact us to discuss your applications and particular challenges.
