AUTOMATED 3D METROLOGY on the plant floor

Published on March 19, 2021

In the face of fierce and growing global competition, high-precision sector manufacturers continue to increase the level of automation on their production lines; throughout supply chains and across all manufacturing processes, including machining, joining, forming, and casting.

This trend towards automation is also transforming process controls and quality controls. These domains are concerned with finding automated measurement solutions that are versatile to integrate in the production line, fast enough to keep up with production, and rugged enough to function right on the plant floor.

Proven benefits for automated non-contact 3D measurements

To help manufacturers achieve these capabilities, NOVACAM 3D metrology systems have been designed with speed, precision and versatility in mind. Novacam Technologies has provided automated 3D industrial measurements for labs and plant floors for over 20 years and across sectors, including in Aerospace, Automotive, Defense, Energy, Electronics, Glass, Medical Instrumentation, Oil and Gas, and Semiconductors.

Clients are able to achieve:

  • 100% (or at least high percentage) inspection
  • Rich data collection to support lean manufacture
  • The tracking and adjustment of processes prior to failure
  • The tracking of tool performance to optimize replacement of expensive process consumables
  • The production of value-adding QC reports for manufactured units
  • Minimization of losses and costly stoppages
Example of automated high-precision inspection on the shop floor:  Automated shaft ID measurements with NOVACAM BOREINSPECT system integrated with Universal robot UR5 equipped with a Robotiq Gripper

Example of automated high-precision inspection on the shop floor: Automated shaft ID measurements with NOVACAM BOREINSPECT system integrated with Universal robot UR5 equipped with a Robotiq Gripper

Watch a video of the above application here.

Speed and measurement capabilities

NOVACAM 3D metrology system product line offers:

  • Non-contact micron-precision 3D geometry (GD&T parameter) measurements
  • Measurements even inside hard-to-reach spaces such as bore IDs
  • High acquisition speed of up to 100,000 3D point measurements/second
  • Measurements of high-aspect-ratio features such as undercuts, steps, channels, cross-holes, splines, threads, or O-ring grooves
  • Ability to also measure chatter, roughness, defects, or semi-transparent material thickness with the same probe
  • Option of acquiring long profiles to accommodate measurements on production webs.
NOVACAM rotational scanner RS2 on a robotic arm inspects bores in an engine cylinder block

NOVACAM rotational scanner RS2 on a robotic arm inspects bores in an engine cylinder block

Choice of optical probes

To suit a wide variety of measurement needs and application environments, Novacam offers several designs of non-contact scanning probes:

  • Small-diameter optical profilometer probes that enter small bores and crevices to measure profiles inside IDs as small as 1mm in diameter.
  • Small-diameter rotational scanner probes that enter small spaces to measure 3D geometry inside such spaces – parameters such as diameter, straightness, angles, concentricity, cylindricity
  • Galvo scanner probes that acquire surfaces in a raster pattern to enable efficient area and strip scanning. Surface flatness and edge radius measurements are example applications.

Click for close-up

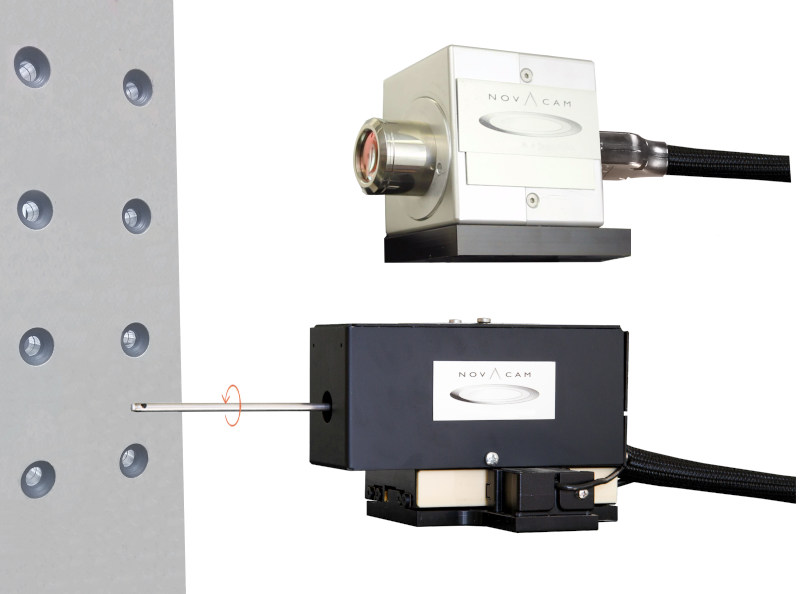

Examples of NOVACAM non-contact optical probes

Examples of NOVACAM non-contact optical probes

Versatility thanks to modular and fiber-based system design

NOVACAM 3D metrology systems are based on low-coherence interferometry technology. They comprise:

  • An interferometer (MICROCAM-3D or -4D) which produces and processes light signals
  • Small-footprint scanning optical probes, which can be deployed at a distance from the MICROCAM, since the two are connected with an optical fiber that can be several meters long.

The system modular and fiber-based design allows the optical probes to be installed wherever required in the process—on precision stages, robot heads, gantrys, or CNCs —while the interferometer (a 4U 19-inch rackable unit) may be located several meters away, such as on the base of a robot.

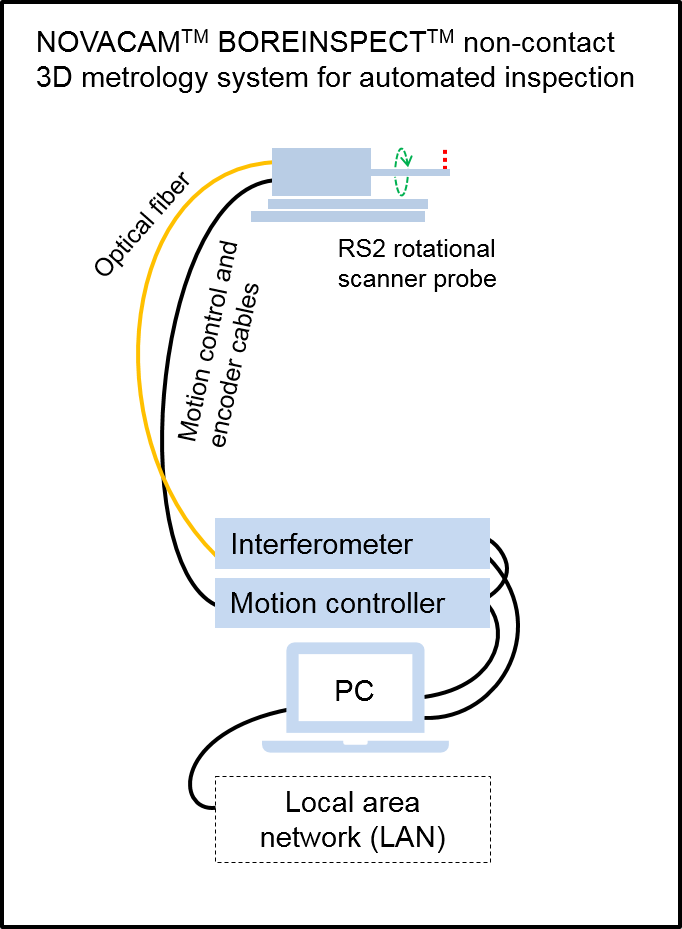

NOVACAM 3D metrology systems, including the BOREINSPECT system, are modular and fiber-based, for easy integration with automated inline inspection stations

NOVACAM 3D metrology systems, including the BOREINSPECT system, are modular and fiber-based, for easy integration with automated inline inspection stations

Immunity to important environmental factors

Novacam systems are notably resistant to environmental challenges:

  • They are not affected by ambient lighting, air perturbation, or cutting of the beam
  • The probes can measure even in hostile environments that are radioactive, cryogenic, or very hot, in vacuum or evaporation chambers
  • The probes can measure through glass or sapphire windows, at standoff distance of up to 1 m, and in water.
NOVACAM systems are capable of measuring inside hostile environments, such as radioactive, extremely hot, or cryogenic, or inside evaporation chambers

NOVACAM systems are capable of measuring inside hostile environments, such as radioactive, extremely hot, or cryogenic, or inside evaporation chambers

Material agnostic – even reflective, semi-transparent, shiny or matte surfaces

The systems also a wide range of materials  including ones that are reflective, transparent, semi-transparent, specular, nonspecular. Dull or shiny surfaces may be measured regardless of color or material. No powder coating necessary to obtain reliable scan data.

A shiny polished surface or a silicon wafer - is no problem for high-precision automated 3D measurement and visualization (here we see flatness measurement result)

A shiny polished surface or a silicon wafer – is no problem for high-precision automated 3D measurement and visualization (here we see flatness measurement result)

Software support for automation

The acquired 3D point cloud analysis may be fully interactive or fully automated.  NOVACAM data acquisition software allows users to automate the full rivet measurement cycle, including scanning, data analysis, and subsequent reporting.

  • User-configurable scan definitions, comprising measurement, data analysis and reporting, can be named and saved for later recall. They may be invoked automatically through a PLC (programmable logic controller) or interactively by an operator with the push of a button.
  • An application programming interface (API) is available for system integrators and OEMs to accommodate a wide variety of online and offline applications. Exported results may be integrated with data loggers and SPC software.

Click for close-up

Automated flatness measurement report from a scan of an automotive valve body

Automated flatness measurement report from a scan of an automotive valve body

Examples of automated 3D metrology applications

NOVACAM 3D metrology systems support the increasingly data driven, robotized and automated drill-and-fill riveting process in aircraft assembly

NOVACAM 3D metrology systems support the increasingly data driven, robotized and automated drill-and-fill riveting process in aircraft assembly
